# Docker

> 全面的 Docker 容器化指南，从基础安装配置到进阶使用技巧、常见报错排查，帮助你在各类系统中快速上手构建部署应用。

## 安装 Docker 环境

在 Ubuntu 系统上安装 Docker 和 Docker Compose。

> [!NOTE]
>
> Docker Compose V2 已集成为 Docker CLI 插件，命令格式为
>
> docker compose
>
> （空格），而非旧版的
>
> docker-compose
>
> （连字符）。

### 方式一：官方源安装

```sh [sh]
sudo apt-get update
sudo apt-get install -y ca-certificates curl gnupg

# 添加 Docker 官方 GPG key
sudo install -m 0755 -d /etc/apt/keyrings
curl -fsSL https://download.docker.com/linux/ubuntu/gpg | \
  sudo gpg --dearmor -o /etc/apt/keyrings/docker.gpg
sudo chmod a+r /etc/apt/keyrings/docker.gpg

# 添加 Docker 官方稳定源
echo \
  "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.gpg] \
  https://download.docker.com/linux/ubuntu $(lsb_release -cs) stable" | \
  sudo tee /etc/apt/sources.list.d/docker.list > /dev/null

# 更新软件包索引
sudo apt-get update

# 安装 Docker 相关组件
sudo apt-get install -y docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin

# 测试 Docker 是否正常
docker --version
sudo docker run hello-world
```

### 方式二：国内镜像源安装（推荐）

适用于国内服务器，使用腾讯云镜像源加速安装。

```sh [sh]
# 1. 卸载旧版本（如果有，报错可忽略）
sudo apt remove docker docker-engine docker.io containerd runc

# 2. 更新系统并安装必要依赖
sudo apt update
sudo apt install -y ca-certificates curl gnupg lsb-release

# 3. 创建密钥目录
sudo install -m 0755 -d /etc/apt/keyrings

# 4. 添加 Docker GPG 密钥（腾讯云镜像）
curl -fsSL https://mirrors.cloud.tencent.com/docker-ce/linux/ubuntu/gpg | \
  sudo gpg --dearmor -o /etc/apt/keyrings/docker.gpg
sudo chmod a+r /etc/apt/keyrings/docker.gpg

# 5. 添加 Docker APT 仓库
echo \
  "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.gpg] \
  https://mirrors.cloud.tencent.com/docker-ce/linux/ubuntu \
  $(lsb_release -cs) stable" | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null

# 6. 更新包索引并安装
sudo apt update
sudo apt install -y docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin

# 7. 启动 Docker 服务
sudo systemctl start docker
sudo systemctl enable docker

# 8. 验证安装
sudo docker --version
sudo docker compose version
sudo docker run hello-world
```

### 配置用户权限

```sh [sh]
# 将当前用户加入 docker 用户组（避免每次都要 sudo）
sudo usermod -aG docker $USER

# 应用用户组变更（需要重新登录或执行）
newgrp docker

# 验证权限
docker ps
docker compose version
```

> [!WARNING]
>
> 执行
>
> usermod
>
>  后需要退出终端并重新登录才能使 docker 组权限生效。或者执行
>
> newgrp docker
>
>  临时激活。

### 配置镜像加速（可选）

国内服务器建议配置镜像加速，提升拉取速度：

```sh [sh]
sudo mkdir -p /etc/docker
sudo tee /etc/docker/daemon.json <<-'EOF'
{
  "registry-mirrors": [
    "https://docker.mirrors.ustc.edu.cn",
    "https://mirror.ccs.tencentyun.com"
  ]
}
EOF

# 重启 Docker 服务使配置生效
sudo systemctl daemon-reload
sudo systemctl restart docker

# 验证镜像加速配置
sudo docker info | grep -A 5 "Registry Mirrors"
```

## Nginx Docker 部署

### 创建项目结构

```sh [sh]
mkdir -p ~/nginx/{conf,html,logs,ssl}
cd ~/nginx
```

### 配置文件

<code-tree :expand-all="true" default-value="docker-compose.yml">

```yaml [docker-compose.yml]
services:
  nginx:
    image: nginx:latest
    container_name: nginx
    restart: always
    ports:
      - "80:80"
      - "443:443"
    volumes:
      - ./conf/nginx.conf:/etc/nginx/nginx.conf:ro
      - ./conf/default.conf:/etc/nginx/conf.d/default.conf:ro
      - ./html:/usr/share/nginx/html:ro
      - ./ssl:/etc/nginx/ssl:ro
      - ./logs:/var/log/nginx
    networks:
      - webnet

networks:
  webnet:
    driver: bridge
```

```nginx [conf/nginx.conf]
user nginx;
worker_processes auto;
error_log /var/log/nginx/error.log warn;
pid /var/run/nginx.pid;

events {
    worker_connections 1024;
}

http {
    include /etc/nginx/mime.types;
    default_type application/octet-stream;

    log_format main '$remote_addr - $remote_user [$time_local] "$request" '
                    '$status $body_bytes_sent "$http_referer" '
                    '"$http_user_agent" "$http_x_forwarded_for"';

    access_log /var/log/nginx/access.log main;

    sendfile on;
    keepalive_timeout 65;

    include /etc/nginx/conf.d/*.conf;
}
```

```nginx [conf/default.conf]
server {
    listen 80;
    server_name localhost;

    location / {
        root /usr/share/nginx/html;
        index index.html index.htm;
    }

    error_page 500 502 503 504 /50x.html;
    location = /50x.html {
        root /usr/share/nginx/html;
    }
}
```

```html [html/index.html]
<!DOCTYPE html>
<html>
<head>
    <meta charset="utf-8">
    <title>Nginx Docker</title>
</head>
<body>
    <h1>Nginx 运行成功!</h1>
    <p>通过 Docker 部署</p>
</body>
</html>
```

</code-tree>

### 启动服务

```sh [sh]
cd ~/nginx
docker compose up -d

# 查看容器状态
docker compose ps

# 查看日志
docker compose logs -f nginx

# 测试配置
docker exec nginx nginx -t
```

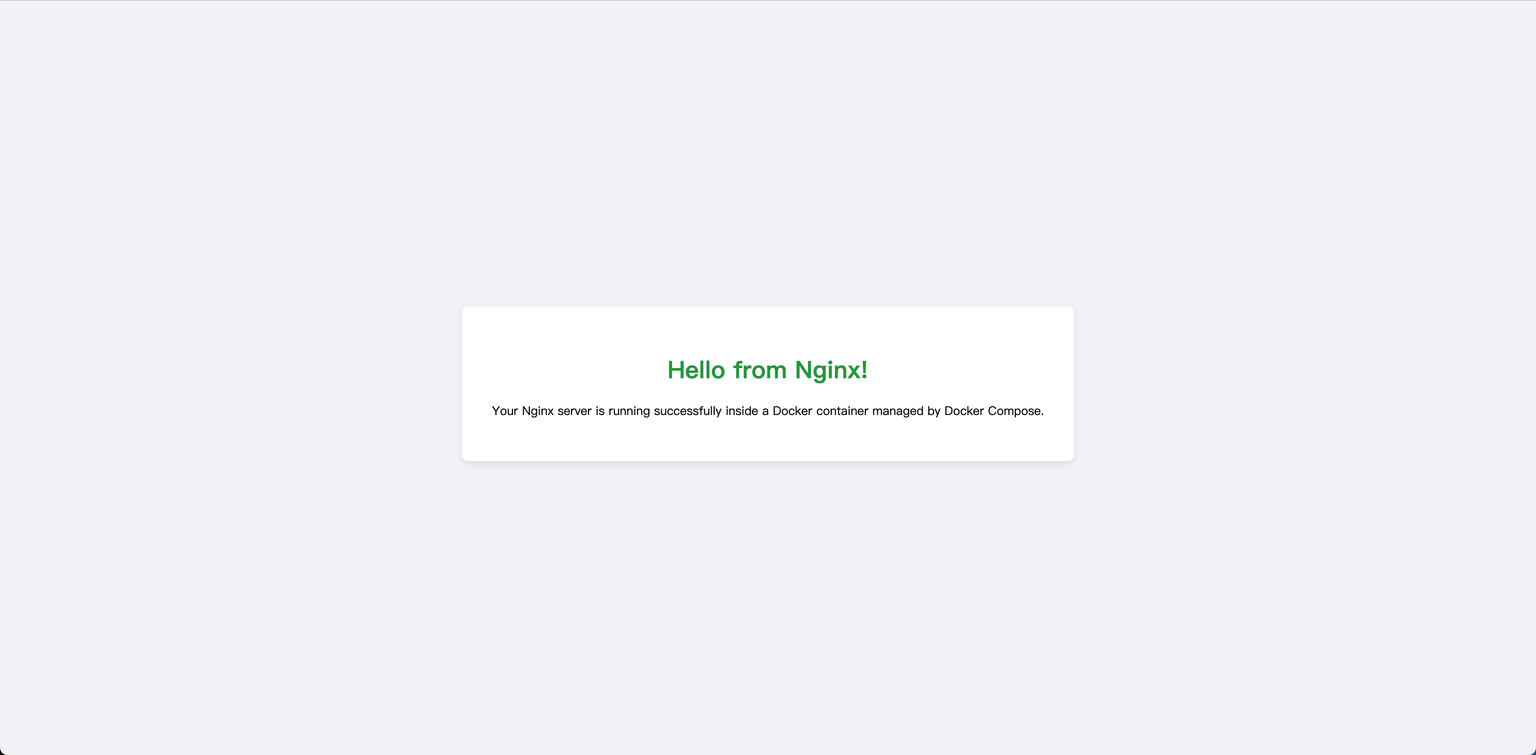

访问 `http://your_server_ip` 验证部署成功。

## Cloudflare SSL 配置

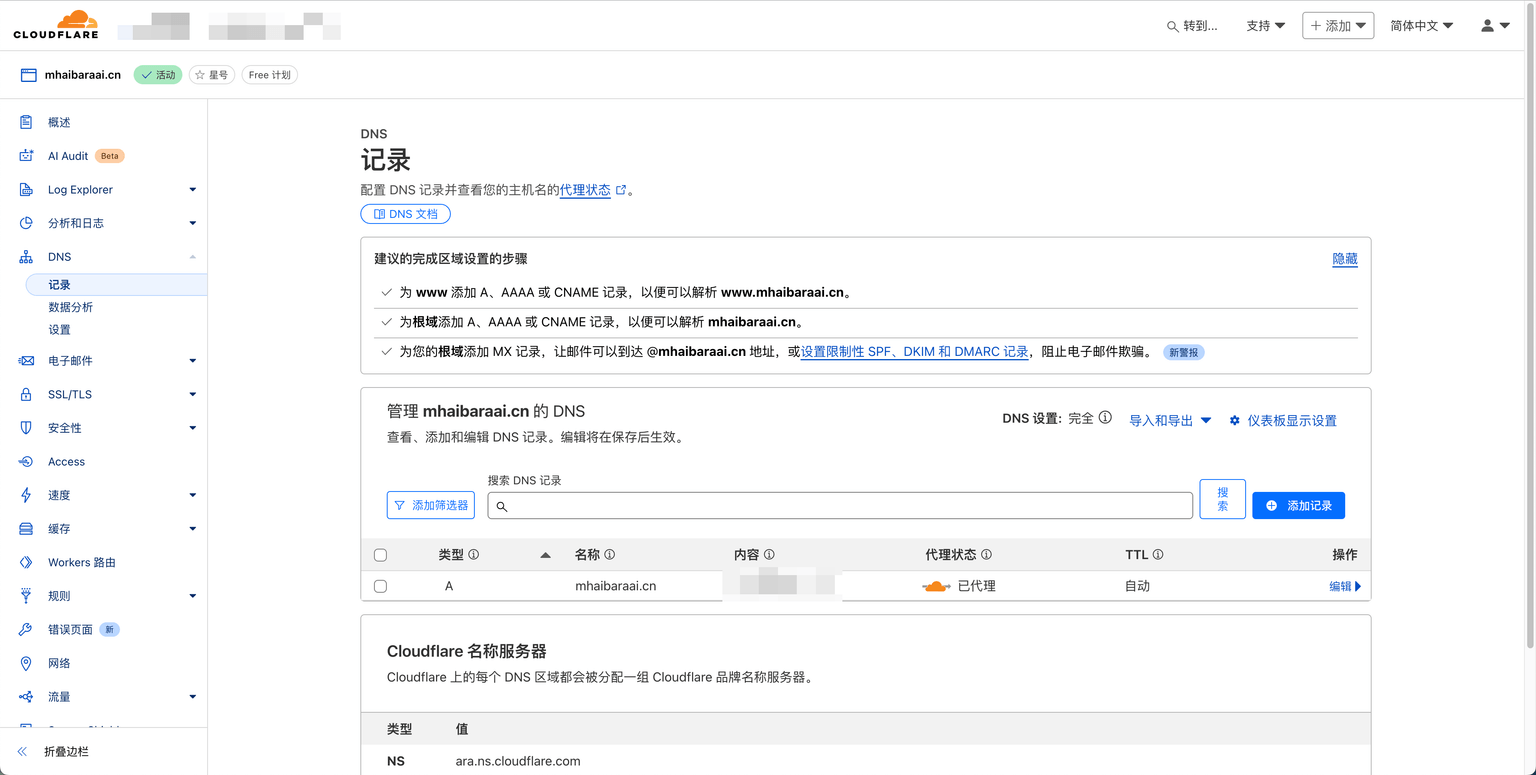

### 添加 DNS 记录

在 Cloudflare 控制台添加 DNS 记录：

1. 登录 [Cloudflare Dashboard](https://dash.cloudflare.com)
2. 选择域名 → DNS → Records → Add record
3. 配置：

  - Type: `A`
  - Name: `server`（或其他子域名）
  - IPv4 address: 服务器公网 IP
  - Proxy status: 🟠 Proxied（推荐）
  - TTL: Auto

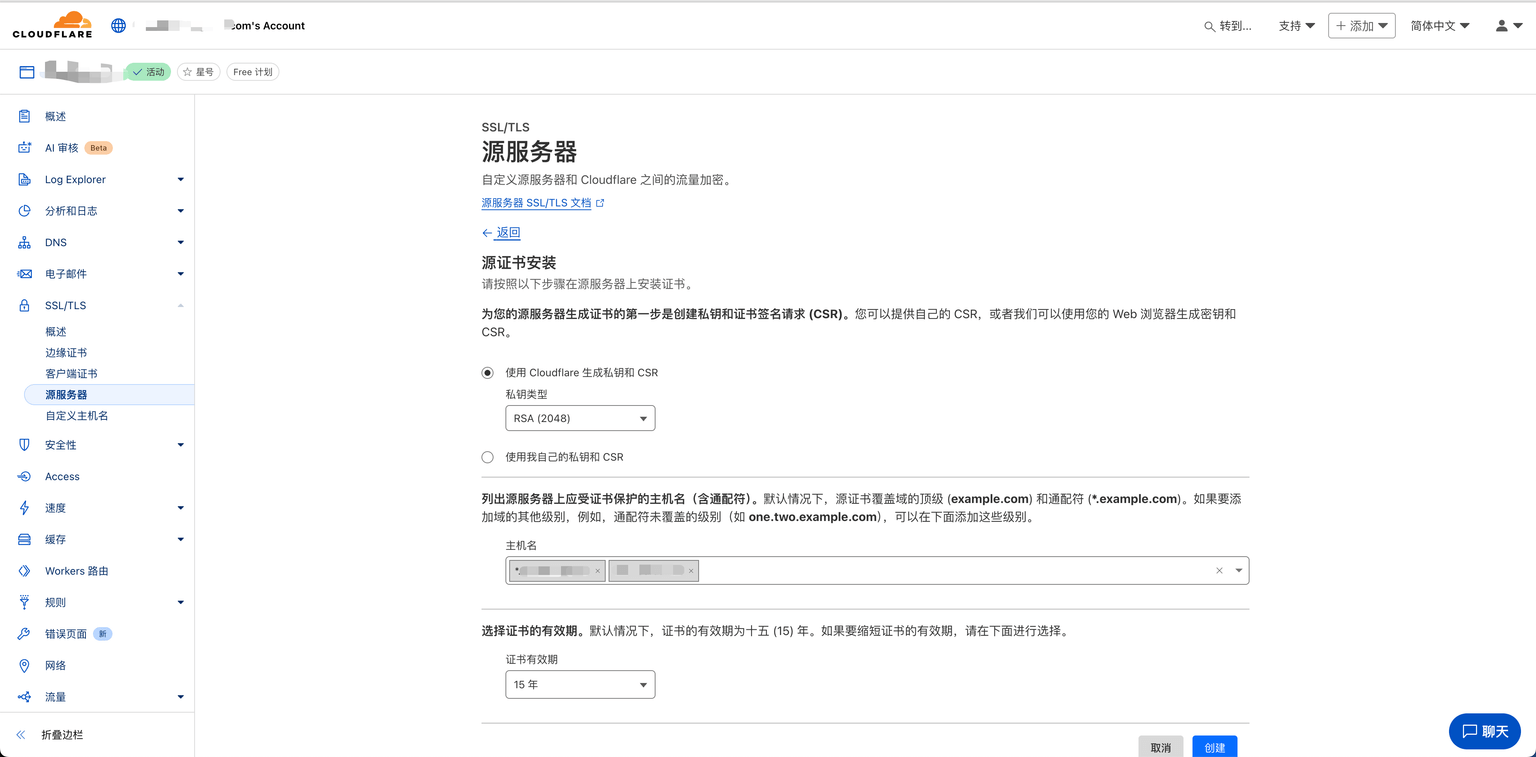

### 创建 Origin 证书

### 进入证书管理

Cloudflare Dashboard → SSL/TLS → Origin Server → Create Certificate

### 配置证书选项

- Private key type: `RSA (2048)`
- Hostnames: `example.com` 和 `*.example.com`
- Certificate Validity: `15 years`

### 保存证书文件

将证书和私钥保存到服务器 `~/nginx/ssl/` 目录：

```sh [sh]
# 创建证书文件
cat > ~/nginx/ssl/example.com.pem << 'EOF'
-----BEGIN CERTIFICATE-----
[粘贴 Origin Certificate 内容]
-----END CERTIFICATE-----
EOF

# 创建私钥文件
cat > ~/nginx/ssl/example.com.key << 'EOF'
-----BEGIN PRIVATE KEY-----
[粘贴 Private Key 内容]
-----END PRIVATE KEY-----
EOF

# 设置权限
chmod 600 ~/nginx/ssl/*.key
chmod 644 ~/nginx/ssl/*.pem
```

### 配置 Nginx SSL

创建 SSL 站点配置：

```nginx [conf/server.example.com.conf]
server {
    listen 80;
    server_name server.example.com;

    # 强制 HTTPS
    return 301 https://$server_name$request_uri;
}

server {
    listen 443 ssl http2;
    server_name server.example.com;

    # SSL 证书配置
    ssl_certificate /etc/nginx/ssl/example.com.pem;
    ssl_certificate_key /etc/nginx/ssl/example.com.key;

    # SSL 优化配置
    ssl_protocols TLSv1.2 TLSv1.3;
    ssl_ciphers HIGH:!aNULL:!MD5;
    ssl_prefer_server_ciphers on;
    ssl_session_cache shared:SSL:10m;
    ssl_session_timeout 10m;

    # 安全头
    add_header Strict-Transport-Security "max-age=31536000; includeSubDomains" always;
    add_header X-Frame-Options "SAMEORIGIN" always;
    add_header X-Content-Type-Options "nosniff" always;

    # 网站根目录
    root /usr/share/nginx/html;
    index index.html index.htm;

    location / {
        try_files $uri $uri/ =404;
    }

    # 日志
    access_log /var/log/nginx/server.example.com.access.log;
    error_log /var/log/nginx/server.example.com.error.log;
}
```

更新 `docker-compose.yml` 添加配置挂载：

```diff [docker-compose.yml]
services:
  nginx:
    image: nginx:latest
    container_name: nginx
    restart: always
    ports:
      - "80:80"
      - "443:443"
    volumes:
      - ./conf/nginx.conf:/etc/nginx/nginx.conf:ro
      - ./conf/default.conf:/etc/nginx/conf.d/default.conf:ro
+     - ./conf/server.example.com.conf:/etc/nginx/conf.d/server.example.com.conf:ro
      - ./html:/usr/share/nginx/html:ro
      - ./ssl:/etc/nginx/ssl:ro
      - ./logs:/var/log/nginx
    networks:
      - webnet

networks:
  webnet:
    driver: bridge
```

重启服务：

```sh [sh]
docker compose down
docker compose up -d
docker exec nginx nginx -t
```

### 设置 SSL/TLS 模式

> [!WARNING]
>
> 必须在 Cloudflare 控制台设置正确的 SSL/TLS 模式，否则会出现错误。

在 Cloudflare Dashboard → SSL/TLS → Overview 中选择：

<table>
<thead>
  <tr>
    <th>
      模式
    </th>

    <th>
      说明
    </th>

    <th>
      推荐
    </th>
  </tr>
</thead>

<tbody>
  <tr>
    <td>
      Off
    </td>

    <td>
      不加密
    </td>

    <td>
      ❌
    </td>
  </tr>

  <tr>
    <td>
      Flexible
    </td>

    <td>
      Cloudflare 到源站用 HTTP
    </td>

    <td>
      ❌ 会导致重定向循环
    </td>
  </tr>

  <tr>
    <td>
      Full
    </td>

    <td>
      Cloudflare 到源站用 HTTPS
    </td>

    <td>
      ✅
    </td>
  </tr>

  <tr>
    <td>
      Full (strict)
    </td>

    <td>
      验证源站证书有效性
    </td>

    <td>
      ✅ 推荐
    </td>
  </tr>
</tbody>
</table>

### 验证配置

```sh [sh]
# 测试 HTTPS
curl -I https://server.example.com

# 查看证书信息
curl -vI https://server.example.com 2>&1 | grep -E "(subject|issuer|expire)"
```

## 常用命令

```sh [sh]
# 容器管理
docker compose up -d          # 启动
docker compose down           # 停止
docker compose restart        # 重启
docker compose ps             # 查看状态
docker compose logs -f nginx  # 查看日志

# Nginx 操作
docker exec nginx nginx -t        # 测试配置
docker exec nginx nginx -s reload # 重载配置

# 进入容器
docker exec -it nginx /bin/sh
```

## 完整项目结构

```text
~/nginx/
├── docker-compose.yml
├── conf/
│   ├── nginx.conf
│   ├── default.conf
│   └── server.example.com.conf
├── html/
│   └── index.html
├── ssl/
│   ├── example.com.pem
│   └── example.com.key
└── logs/
    ├── access.log
    └── error.log
```
